超音波液體流量計

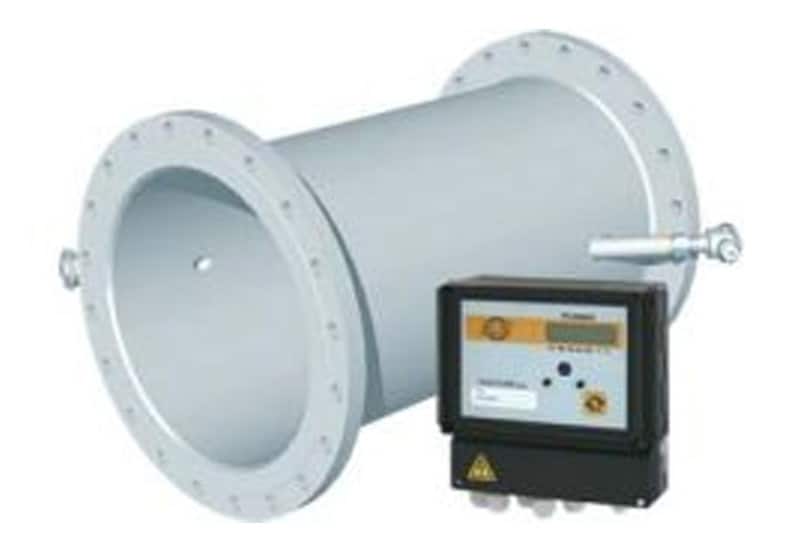

SONOELIS SE404x, SE406x one-beam and dual-beam ultrasonic flow meters with mains power supply for industrial flow rate measurement of electrically conductive, non-conductive or aggresive liquids in pipes DN32 to DN300 ((1 1/4" to 12").
Dimension range:
DN32 to DN300 (1 1/4" to 12")
Two basic designs:
single-beam (SE 404x) and dual-beam (SE 406x)
Three variants of electronics:
COMFORT (electrical outputs, display, keyboard), STANDARD (electrical outputs, display) and ECONOMIC (without display, electrical outputs only)
Temperature of the measured liquid:
0°C to 150°C (32 °F to 302 °F)
Protection of the sensor:
IP67
Protection of evaluating electronics:
IP65
Outputs:
pulse, frequency
Power supply:
110 to 250VAC, 50 to 60Hz (AC)
Options:
PN40 (600 psi) for DN100 (4") and higher
extended temperature range: from -20°C to +180°C (-4°F to 356°F)
sensor protection: IP68
communication line: RS485/MODBUS RTU
power supply: 24 V DC
Current output:0 (4) to 20mA
Relay output
Flow-rate measurement in two direction
