LASER LEVEL TRANSMITTER

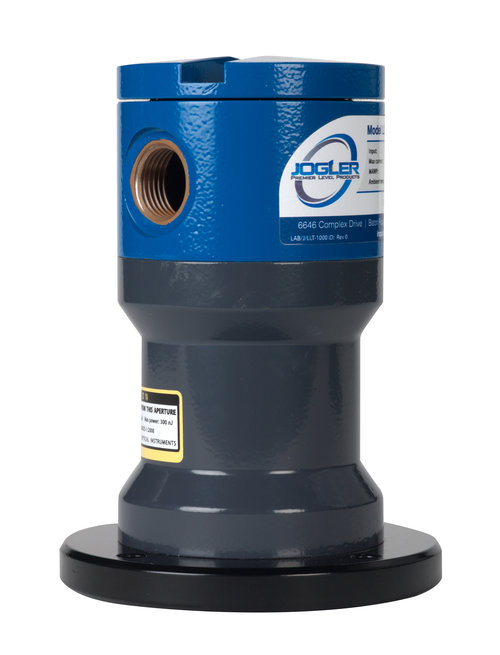

The LLT-1000 LIDAR Level Transmitter is a non-contact, laser based instrument that measures the level of dry solids and opaque liquids in silos, tanks, hoppers, and other vessels. 4-20mA and relay outputs give the LLT-1000 the flexibility to be used in various control schemes.

•


  4-wire transmitter (requires 24VDC)





•


  Non-contact measurement





•


  Narrow, accurate beam / long range (up to 330 ft)





•


  Visible aiming laser (optional)





•


  Dual compartment enclosure





•


  Custom mounting options





•


  Class I, Division 2, Groups A, B, C, D





•


  Class II and Class III, Groups E, F, G





•


  ATEX and IEC ratings





•


  Maintenance-free / Low cost-of-ownership
