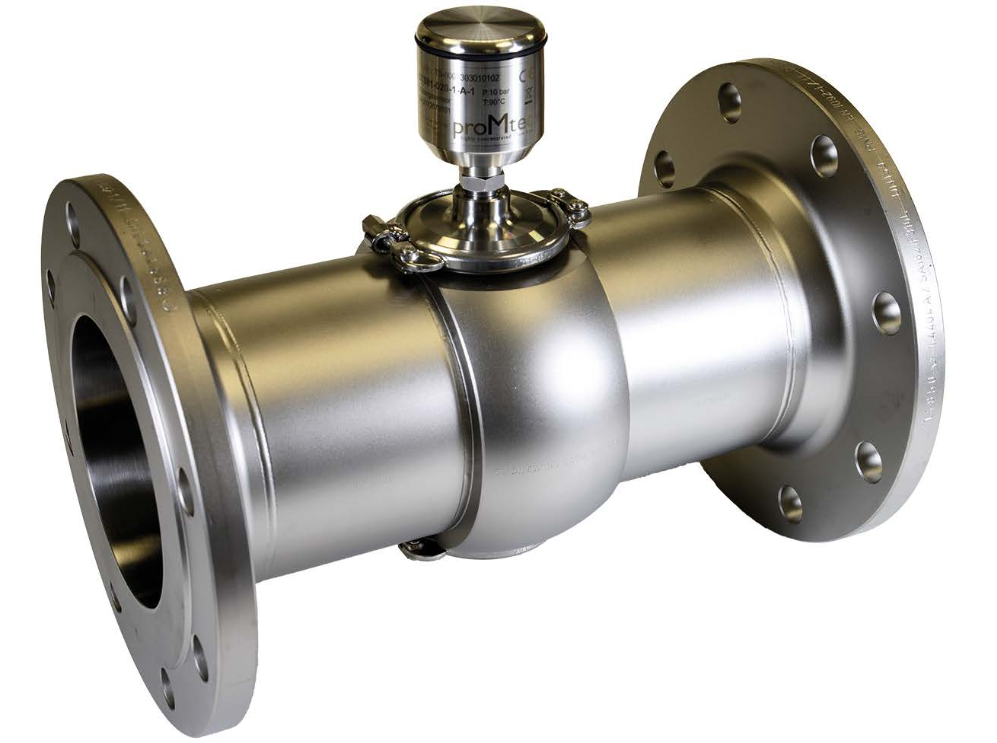

Inline Turbidity Analyzer
ITC detects the turbidity of a liquid reliably and precisely.
The inline measurement occurs directly within the liquid stream. The turbidity can be displayed as a
concentration in ppm or as a solids concentration in g/l.
The measurement is based on the transmitted light method, which is carried out with a near-infrared light
beam that is emitted by a LED with a specific wavelength of 880 nm.
Due to the selected higher wavelength of near infrared light in comparison to the visible light the ITC system
detects the solids concentration reliably regardless of the color of the medium to be measured.
Housing:
Aluminium wall housing, protection IP65, Dimension 160 x 160 x 120 mm, 3,1 kg
Mounting:
4 holding flaps H x W = 142.5 x 273 mm for ø 5 mm
Power Supply:
24 V DC max. 1000 mA
Output:
4 – 20 mA isolated output for concentration and temperature, loop resistance 500 ohms
Process temperature:
0 – 90°C
Process pressure:
10 bar
