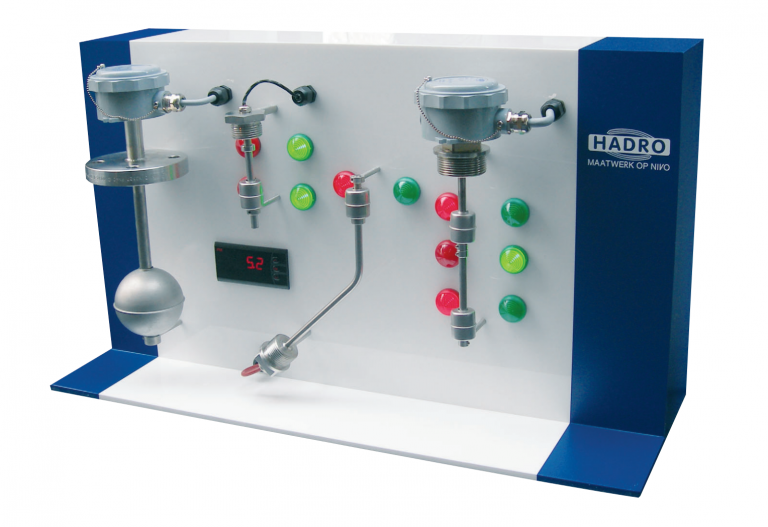

Hadro Magnetic Level Gauge/ Float Switch
Float Switch
產品特色
We produce different types of float switches and levelmeters (4-20 mA) with the following options such as: threated connection, a flange connection (DIN & ANSI).
Take one of the models for example, should choose the model by actual process condition.
Product specifications
Material:
PA(IP65)
ABS(IP67)
Process connection:
ANSI 1” ; 1.1/2” ; 2”
G 1”
G 1/2”
Electrical data of the switch:
Max. supply 230 VAC / VDC
Max. current 0,4A
Max. rating 8W/VA
PFA foam float:
P= 4 bar
Ø 20 mm
T= < 100°C
sg= >=0,8 kg/m3
SS316 float:
Ø 27 mm
P= 10 bar
T= < 160°C
sg= >=0,8 kg/m3
SS316 float:
Ø 44 mm
P= 25 bar
T= < 160°C
sg= >=0,7 kg/m3
SS316 float:
Ø 60 mm
P= 25 bar
T= < 160°C
sg= >=0,6 kg/m3
*Please contact us if you need further information.
