PCE28

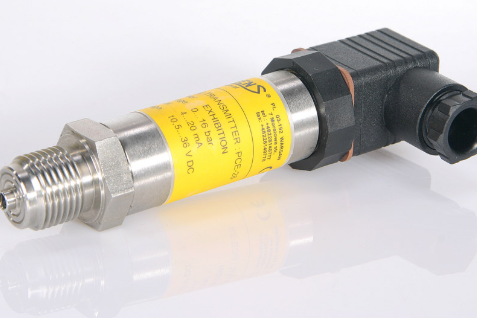

The PCE-28 pressure transmitter is applicable to the measurement of the pressure, underpressure and absolute pressure of gases, vapours and liquids. The active sensing element is a piezoresistant silicon sensor separated from the medium by a diaphragm and by specially selected type of manometric liquid. The electronics is placed in a casing with a degree of protection from IP 65 to IP 68, depending on the type of electrical connection applied.
Range:
up to 1000 bar
Accuracy:
+/-0.1%
Output Signal:
4 ÷ 20 mA two-wire
0 ÷ 10 V output
Explosion protection level(Exia(IECEx)):
Ex ia IIC T4/T5/T6 Ga/Gb
Ex ia IIIC T110ºC Da
Ex ia I Ma
Material of wetted parts:
316Lss(Standard)
Hastelloy C 276
Material of casing:
Aluminum, 304ss or 316Lss
Power supply:
output 4..20mA , 8…36 V DC (Ex 9...28 V DC)
Operating temperature range (ambient temp.):
40...80°C
Medium temperature range:
-40...130°C
Process connection:
Variable, please contact us
Electrical connection:
Variable, please contact us
