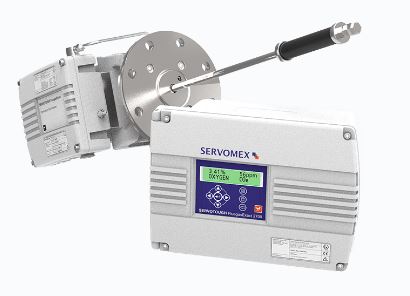

SERVOTOUGH FluegasExact 2700
SERVOTOUGH FluegasExact 2700 measures oxygen and combustibles in the most demanding hydrocarbon processing and power generation applications.
Designed for high temperature processes up to 1750°C (3182°F), it is ideal for use in extreme heated environments. This resilience makes it the analyzer of choice for controlling a wide range of combustion processes, including use in process heaters, utility boilers, thermal crackers, incinerators and furnaces.
- The FluegasExact 2700 uses trusted Zirconia technology for oxygen sensing and a sulfur-resistant combustibles sensor, all in one compact combustion gas analyzer.
- Uses industry-leading technologies (Zirconia cell and Thick Film Catalytic sensor) for ultra-accurate and reliable measurements
- Designed for Safe Area, IECEx Zone 2, North America Division 2 and ATEX Cat. 3 hazardous area rated locations
- Robust O2 and COe analysis meets diverse application needs
- Simple installation and low maintenance requirements
- Extractive sampling design protects from harsh process conditions, extending product life
| Gas | Measurement |
|---|---|
| Oxygen (O₂) | % |
| Combustibles (COe) | ppm |
Technology: Zirconium oxide (Zirconia)
Typical combustion applications: All combustion applications
Working range: 0~21% O2
0~6,000ppm COe
Intrinsic error (accuracy): +/-1% of reading or +/-1% O2
+/-25ppm or +/-5% of reading
Measurement resolution: 0.01% O2
1 ppm recommended
Drift (zero): Per 3 mounths; <0.5% of range or 0.05% O2
<25ppm/week
Repeatability: <0.1% O2
+/-25ppm or 5% of reading
Display range: 0.01% to 25% O2
0~10,000ppm
